• Range: PAS mode: 90-100KM; Throttle mode: 60-70KM
• Total Payload Capacity: 180kg (approximately 400 lbs)
• powerful motor:60V1500W
• Brake System: Dual Hydraulic Disc Brakes
• Safety Certified:CE/COC/UL Certified

I. Basic Core Parameters

• Total Bike Weight: 48kg
• Frame Material: 6061 Aluminum Alloy
• Battery Specification: 60V 30Ah SAMSUNG Cells
• Charging Time: 8-10 hours
• Total Payload Capacity: 400 lbs (approximately 180kg)
• Recommended Rider Height: 165-200cm (5'5"~6'6")
• Tire Specification: 20"×4.0 Non-slip Fat Tires
• Brake System: Dual Hydraulic Disc Brakes
• Gear Shift System: Shimano 7-Speed Rear Derailleur (TX55)

II. Performance Parameters

• Motor Configuration: 1×1500W Rear Hub Motor
• Peak Torque: 150N·m
• Maximum Gradability: 45°
• Maximum Speed: Up to 65km/h
• Range: PAS mode: 90-100KM; Throttle mode: 60-70KM
• Controller: Intelligent Brushless Sine Wave Controller
• Assist Mode: 0~5 Level Adjustable Pedal Assist (PAS)

III. Dimension Parameters (Length/Height/Distance)

• Total Length: 185cm
• Handlebar Height: 105cm
• Handlebar Length: 77cm
• Wheelbase: 122cm
• Seat Height Range: Minimum 82cm ~ Maximum 90cm
• Standover Height: 50cm
• Chain Stay Length: 54cm
• Head Tube Length: 16cm
• Wheel Diameter: 50cm

IV. Core Functions

• Riding Modes: Supports three modes - Pedal Assist Only, Electric Only, and Both Coexistence
• Display Functions: Yolin Color LCD Display, supporting real-time speed, total mileage (ODO), single trip mileage (TRIP), average speed (AVG), maximum speed (MAX), battery level, and error code display
• Assist Functions: 6km/h Walk Boost Mode, Cruise Control Function, Slow Start Adjustment (1-4 levels adjustable)
• Operation Functions: Metric (KM)/Imperial (MPH) unit switching, customizable speed limit (1-100km/h), personalized parameter settings (assist sensitivity, current limit, etc.)
• Safety Configuration: Super Bright LED Headlight, integrated horn, automatic fault diagnosis (error code display), battery anti-theft lock
• Other Functions: Removable battery (supports on-bike charging/removable charging), Shimano 7-speed gear shift, KMC chain, thick and comfortable leather saddle, heavy-duty aluminum kickstand

V. Key Features

• Waterproof Performance: Safe for light rain (avoid heavy rain/flooded roads)
• Personalized Settings: Backlight brightness adjustment, auto-sleep time setting (00-60 minutes), assist level range selection (8 modes including 0~3/1~5)
• Convenient Functions: One-Click Factory Reset, manual Trip mileage reset, auto-shutdown after 10 minutes of inactivity

I. Free Shipping

• Enjoy free shipping to 26 EU countries, with delivery in just 3–7 days!
• In addition, we also support shipping to the UK/US, with delivery typically within 1–5 days!
• Note: We currently only offer delivery to the following countries/regions.


II. 15-Day Return

• At Shengmilo Ebikes, we stand by our electric bikes' qualityand stand behind every purchase. Enjoy a hassle-free return within 15 days of delivery for bikes in original condition. Just ensure you retain the original packaging. If unsatisfied, reach out to us. Shop confidently and relish the ride!

III.2-Year Warranty

• Shengmilo bikes are backed by a manufacturer’s warranty, covering all factory defects for 2 years exclusively for the original owner. Important note: This warranty excludes the free accessories included with the bike.

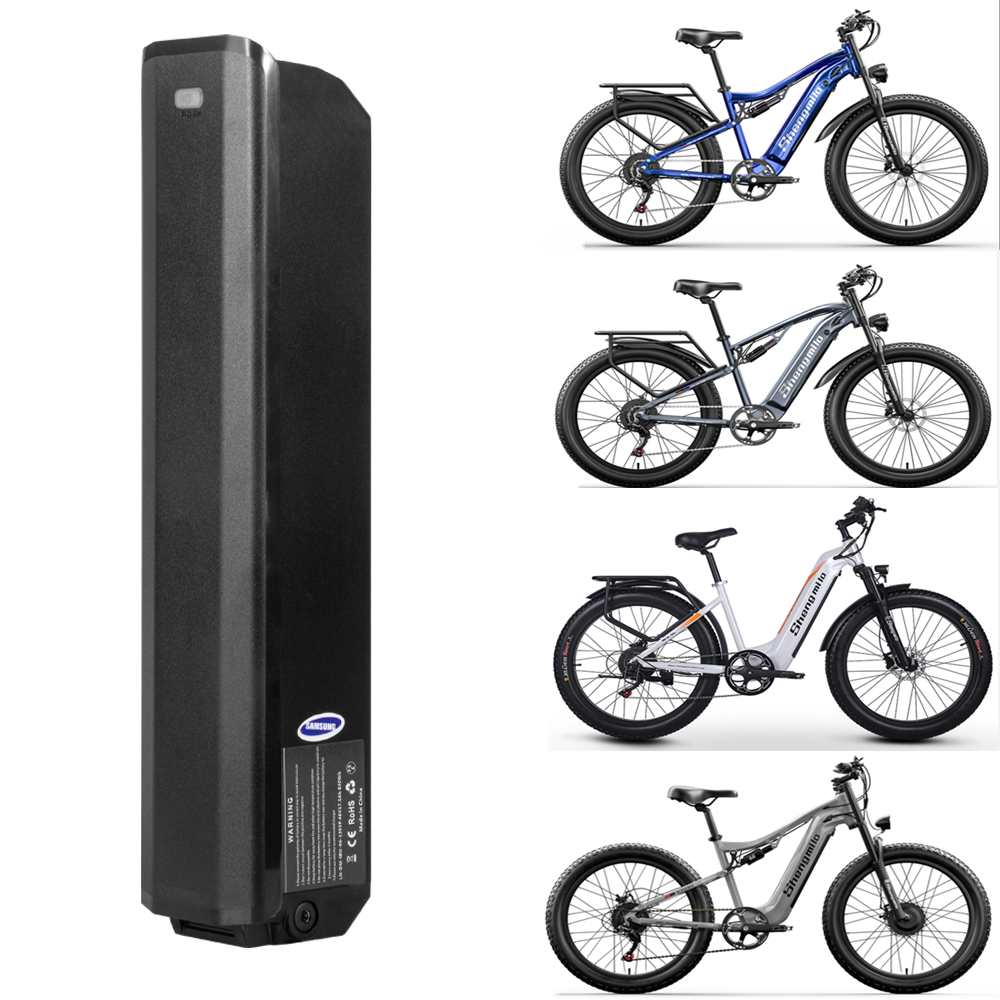

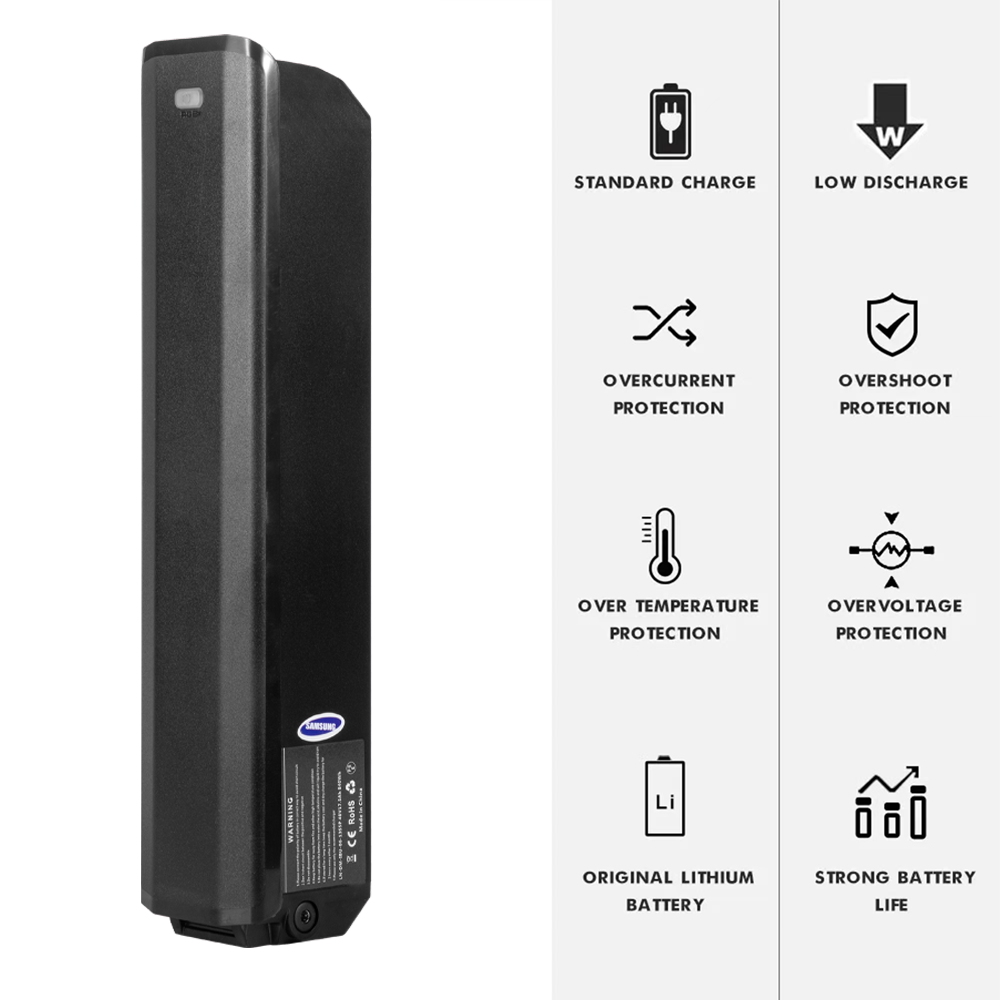

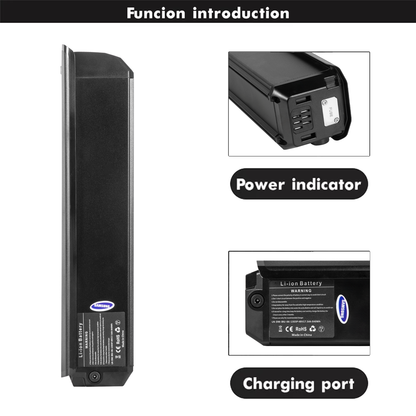

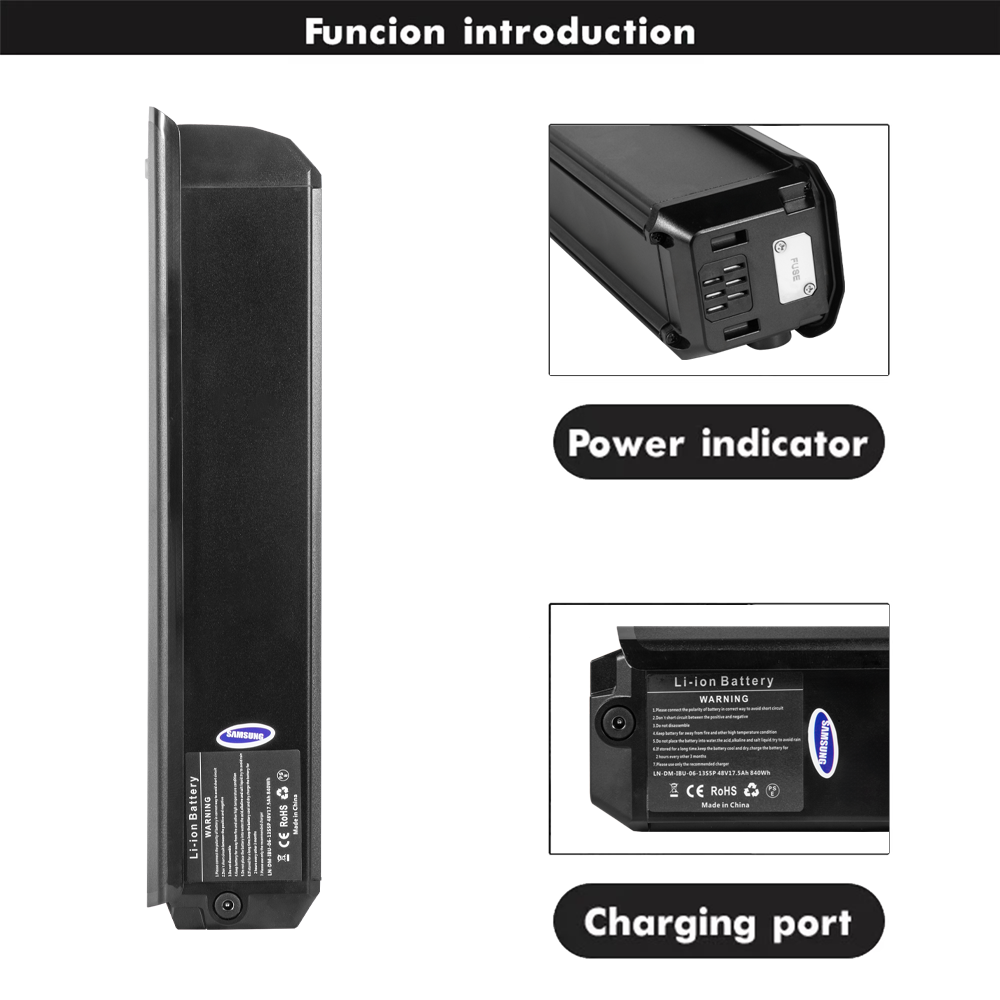

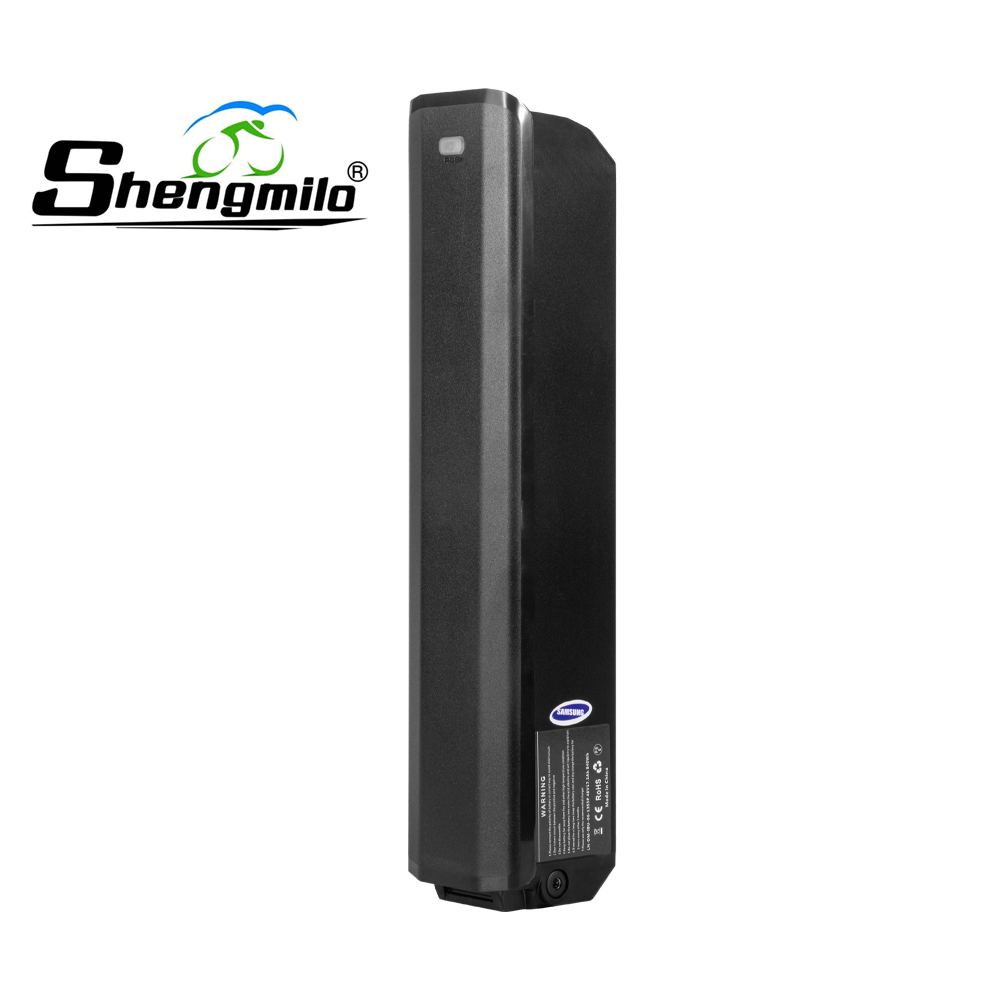

I. Battery Maintenance (60V 30AH Shengmilo Battery)

• Avoid full discharge; turn off power when battery is low.
• Charge fully after each use to extend lifespan. For long-term storage, keep it fully charged and recharge monthly.
• Safe for light rain—avoid heavy downpours or flooded roads to prevent component damage.
• Keep away from open flames, high-temperature sources, and direct sunlight. Do not recharge immediately after use in high temperatures.

II. Motor Maintenance (1500W Geared Hub Motor, 160Nm Torque)

• Regularly check and tighten motor screws/nuts to prevent wire disconnection failures.
• Motors are not waterproof—avoid riding in water deeper than the wheel hub’s lower edge.

III. Chain Maintenance

• Clean after each ride (pay extra attention in rainy/humid conditions) with a dry cloth + brush; use warm soapy water if needed. Avoid strong acid/alkaline cleaners.
• Apply lubricating oil to bearings after cleaning (ensure the chain is dry first) to prevent rust.
• Maintain a vertical chain position when shifting—avoid pairing smallest/largest gears with corresponding flywheels to reduce wear.

IV. Front Fork Maintenance

• Clean with a clean, oil-free cloth and water/soapy water; invert the bike to prevent water from entering the front fork, then dry thoroughly. Protect the inner tube and dust seal.
• Recommend installing a front fork dust cover to shield against dust and hard impacts.
